Tech Tip. Removing a stubborn Octolink bottom bracket for 2p

So I needed to remove the Shimano Octolink Bottom Bracket on the Emotion Ebike,but unlike my other bikes this uses the now more unusual Shimano hollow octolink bottom bracket and i only had the removal tool for a square taper type. What to do?

Well the answer is to spend a penny! well actually spend two.

The issue is that the standard square taper crank removal tool usually pushes against the solid inner axel of the crank but with the octolink type its hollow so the adapter just screws in without pushing against anything.

But if you drop in a penny first….

pop the penny in

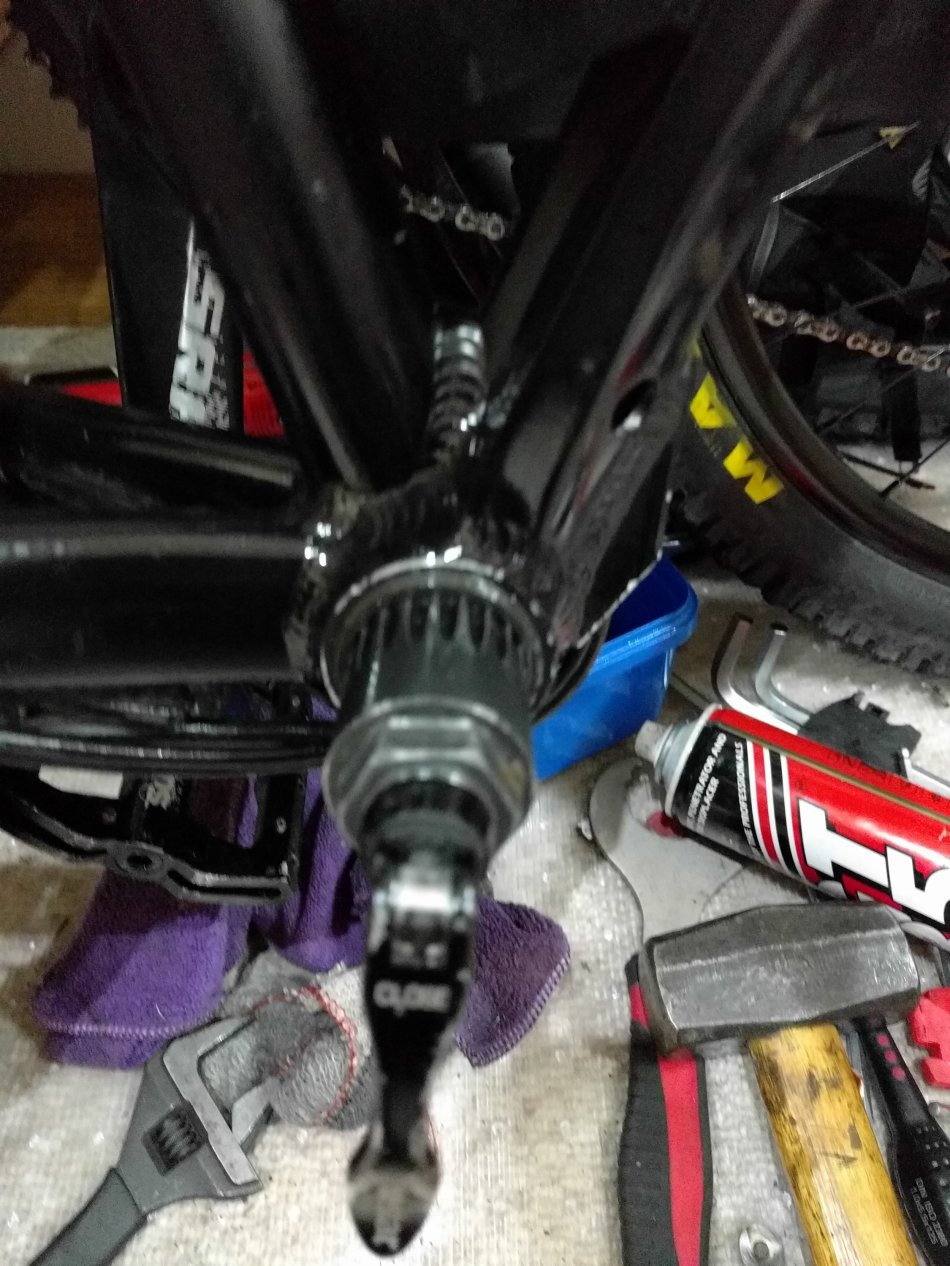

crank the tool down and off it comes!

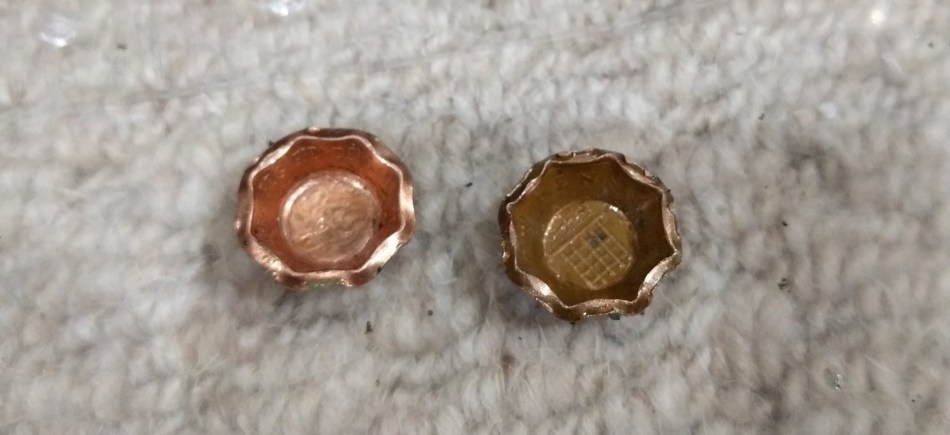

and you are left with a interesting curiosity.

Oh and a second tip. if you are struggling to get the bottom bracket removal tool to grip well. With a hollow bottom bracket a spare wheel quick release sqewer helps.

Hi, I am one of the trustees of Empowered people. As well as looking after this website, I am also an ebike builder, modifier, hacker, and general bike mechanic. I have been involved with the Charity since 2015 and participate in as many rides as I can with my wife Catherine on the 'Bike Train' if you look around the website you are sure to find me in the background somewhere.
